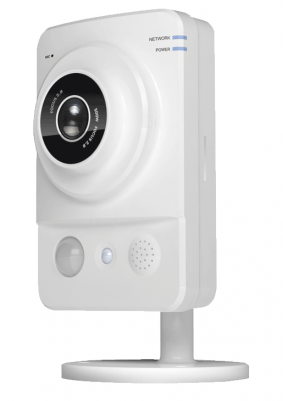

The IP100CM is a reliable and great quality indoor 3 Megapixel IP Camera with that has a built-in microphone & speaker that allows for two way communication from a Windows PC, iPhone, iPad, or Android tablet or phone. It is also compatible with our NVRs to record video and audio together at up to 3MP or 1080P resolution. The camera has about 33ft or infrared night vision, a 2.8mm Lens that provides a 100 degree angle of view, and has a built-in motion detector for better motion detection than the software based motion from a NVR.
The IP100CM camera is suitable for use indoors in the home or office where you want both video and audio capture. The high resolution combined with the audio capture surpasses any conventional analog CCTV camera on the market. No matter what your use is, be it keeping an eye on your employees in the office or a nanny at home, this camera will meet your needs. The video it produces is exceptional for a 3 Megapixel camera due to the high quality video sensor inside that offers great color reproduction during lit conditions, and amazing clarity in darkness with infrared. Watch out for cheap ip cameras out there. You get what you pay for. Cheap cameras cannot compensate for changing light conditions like this camera can.
Examples of use:
You can use one or several cameras without a recorder as a nanny cam or webcam and view the camera from anywhere in the world using your PC, Apple Computer, iPhone, iPad, or Android tablet or phone to watch live video. Since this IP100CM camera also has a microSD slot, you can record video on to the card directly and access it later by pulling the card and connecting it to your computer.
You can deploy several cameras on a network and connect them to a NVR to record video & audio all the time, on a set schedule, or on motion detection on the NVR video recorder to make your professional security camera system. You can access the NVR from anywhere in the world using your PC, Mac, iPhone, iPad, or Android tablet or phone to watch live video or recorded video.
If we have left anything out about this great indoor IP camera from 123CCTV, please contact our technical support department.
Features:
- 1/3 inch 3 Megapixel Aptina Sensor
- Dual stream encoding with H.265 and H.264
- Day & Night IR Cut Filter for great color reproduction
- 2.8mm Lens for a 100 degree angle of view
- IR LED for up to 33ft of night vision
- Real Time 1080p video streaming or capture
- Internet, PC, Mac, Smartphone viewing capable
- MicroSD slot for recording footage on camera upon motion detection
- Support up to 128GB microSD card
- Accepts 12VDC power input or PoE 802.3af power
Includes:
- 1 x Indoor 3 Megapixel IP Camera with Speaker and Mic
Specifications:
Image Sensor | 1/3" 3MP Progressive Scan CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 2304 (H) x 1536 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination | 0.78 Lux/F2.0 (Color), 0 Lux (IR On) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | More than 50dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance | 33ft | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control | Auto, Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs | 1 Super IR LED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.8 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Aperture | F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View | Horizontal:100° Vertical:54.5° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bracket Range | Pan: 0° - 360°, Tilt: -10° - 90°, Rotation: 0° - 360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | H.264, H.264H, MJPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability | 2 Streams (Main Stream, Sub Stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 3MP, 1080P, 1.3MP, 720P, D1, VGA, CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate | Main Stream: 3MP (1-20fps), 1080P (1-30fps), Sub Stream VGA/QVGA (1-30fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR, VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate | H264 32K - 10240Kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR), Color, B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC Mode | BLC, HLC, DWDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto, Natural, Street Lamp, Outdoor/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | Off / On (4 Zone, Rectangle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest | Off / On (4 Zone) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart IR | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom | 16X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flip | 0°/90°/180°/270° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Off / On | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | Off / On (4 Area, Rectangle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Interface | Built-in Mic and Speaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a, G.711Mu, AAC, G.726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Inputs | Built-in PIR Sensor, 1 Channel-in, 1 Channel-out | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet | RJ-45 100Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF, PSIA, CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method | Unicast / Multicast | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. User Access | 10 Users | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MicroSD Slot | Yes up to 128GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Storage | NVR, NAS (Network Attached Storage), Local PC for instant recording | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Viewer | IE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone | iPhone, iPad, Android Phone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC12V, PoE (802.3af Class 0) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 5W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | 14° F - +113° F, Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weather Protection | No, Indoor camera | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal Resistance | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Plastic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 3.09" diameter x 5.03" height | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.70 lbs | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE, UL, FCC Part 15 Subpart B |
