25X HD PTZ Camera 1080P 2MP

Item # PTZ25CVI

Be the first to review this product

Availability: In stock

$899.99
$899.99

Lifetime Technical Support on all purchases

100% Guarantee with 30 Day Return Policy

Premium Service from 123-CCTV.com

Description

Details

You are looking at one of the most affordable HD Pan Tilt Zoom cameras on the market. You no longer have to pay thousands of dollars for a HD PTZ camera. This outdoor weather proof PTZ camera connects to the latest EasyHD DVR over RG59 coaxial cable. Due to the EasyHD technology, both video and data are carried over one coaxial cable, allowing easy connection of the camera to the DVR. The hassle of connecting to a fragile RS485 connection is eliminated.

720p HDCVI comparison to 700TVL
HD PTZ Zoom Example

This camera features a SONY Sensor with 2MP resolution and Starlight technology that allows the camera to output 1080P stunning video. If you have an older analog DVR you can even set the camera to standard definition (960H) for use with an analog DVR. Regardless, the picture quality far exceeds that of conventional CCTV cameras. This Pan Tilt Zoom camera also has a 25X optical zoom and 16X digital zoom, making it possible for the camera to see detail hundreds of feet away, more than you could even with a 36X analog PTZ. Please see the example of this HD camera's zooming capability.

Thanks to 3D positioning offered by our HD DVRs and PTZ cameras when used together, it is super easy to zoom in at a point of interest. Simply draw a rectangle with your mouse on the camera video at the DVR, and the camera will zoom in to the location you outline. Be sure to also watch the youtube video located underneath the product picture above to see actual footage from the camera.

It also comes with several professional features such as WDR to help minimize glare. Also you can set 300 preset points on the camera through the DVR, and program up to 5 patterns and 8 tours. If you would like to connect this camera to a traditional PTZ joystick controller in addition to the DVR, you can do that through the RS485 connections on the camera. There are also several mounting options available. This HD PTZ camera ships standard with a wall mount.

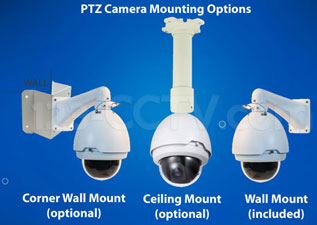

PTZ mounting options

If you need help, you get free tech support with every purchase for the product purchased. We also have free mobile apps and viewing software so you can view and control your cameras connected to the EasyHD DVR remotely through your smartphone (iPhone, or Android), tablets, or pc/apple computer.

Features:

  • 2 Megapixel video resolution
  • 1080p Video recording on a EasyHD DVR
  • 25X Optical Zoom, 16X Digital Zoom
  • High speed dome camera
  • Starlight Low Light Sensor
  • Endless 360 degree rotation with auto flip
  • Outdoor IP67 Weather Proof
  • Wall, ceiling, and corner wall mounts available
  • 24V AC Power Input
  • Switchable BNC HD or analog video output

Includes:

  • 1x HD PTZ Camera
  • 1x 24V AC Power Supply
  • 1x Wall mount bracket

Specifications:

Image Sensor1/2.8" 2MP SONY Starvis CMOS
Effective Pixels 1920 x 1080P
Electronic Shutter 1/4 - 1/30,000s
Video Frame rate 720P(25/30/50/60fps)
Minimum IlluminationColor: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6
Video Connector BNC
Video Signal HDCVI, Analog CVBS
Day/ NightAuto (ICR) / B&W / Color
Backlight Compensation BLC / HLC / WDR
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Noise Reduction2D / 3D
Focal Length4.8mm - 120mm, (25X Optical Zoom)
Max Aperture F1.6 - F4.4
Angle of ViewH: 59.2° - 2.4°
OSD MenuYes
Digital Zoom16x
Pan/Tilt RangePan: 0° – 360° endless; Tilt: 0° – 90°, auto flip 180°
Preset Speed Pan: 0.1° – 350° /s; Tilt: 0.1° – 250° /s
Preset 300
PTZ Mode5 Pattern, 8 Tour, Auto Pan, Auto Scan
Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Time TaskAuto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
ProtocolEasyHD, Pelco-D, Pelco-P
RS485Yes Included
Power Requirements AC 24V 1.5A
Power Consumption13W (heater off), 23W (heater on)
Operating Temperature-40°F to +140°F
Operating Humidity 95% RH Max
Transmission DistanceUp to 1640ft with Solid Copper Coaxial Cable
Protection IP67
Vandal Resistance IK10 Impact and Vandal Resistant
Weight 5.54 lbs
Dimensions7.33" x 10" (diameter x height)

Additional Info

Additional Info

Warranty 1 Year
Return Policy 30 Days Return Policy
