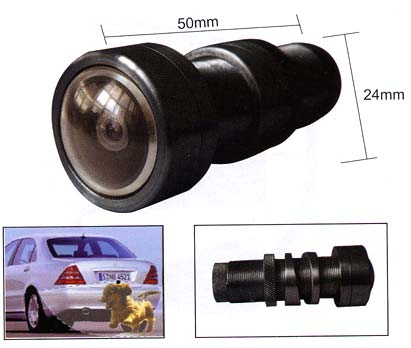

Great camera that can be used as a back up camera, covert camera, or peephole camera. This camera has a SONY CCD that provides a high resolution picture at 480TVL and is sensitive enough to see in low light down to 0.1 Lux. Note that it is not a mirror image camera. You must use this camera along with a monitor that has a mirror image function.
Features:
- Super Wide Angle 1.7mm Lens
- 178 degrees Angle of View
- 480 TV Lines of High Resolution
- Sony 1/3 inch Color CCD
- Adjustable Screw Mount
- DC12V 150mA (can be powered by Car Battery)
Includes:
- 1x Back up camera
- 1x 12V DC 500mA power supply
Specifications:
| Pick-up device: | 1/3" CCD Color Image Sensor | |
| Picture elements: | EIA/NTSC: 512 H x 492 V CCIR/PAL: 512 H x 582 V |
|
| Horizontal resolution: | 480 TV Lines | |
| Minimum Illumination: | 0.1 Lux High Resolution | |
| Horizontal Sync. Frequency: | EIA//NTSC: 15.734 KHZ - CCIR/PAL: 15.625 KHZ | |
| Vertical frequency: | EIA//NTSC: 60 HZ - CCIR/PAL: 50 HZ | |
| Clock frequency: | EIA//NTSC: 19.0699 MHZ - CCIR/PAL: 18.9375 MHZ | |
| Lens: | 1.7mm Super Wide Angle Lens | |
| Video output: | 1Vp-p , 75 Ohms | |
| Gamma: | 0.45 | |
| Power Supply: | DC12V (from Car Battery) | |
| Power Consumption: | 150 mA | |
| Storage Temperature: | -30°C - 60°C | |
| Operation Temperature: | -10°C - 45°C |
