Security Camera Power Distribution Box 12V DC

These Security Camera Power Boxes come in 12 Volt DC and are highly recommended for the home or professional installers. Able to be purchased in a 12 Volt 5amp (5000mA) or 10amp (10,000mA) which allows the user to power up to 9 devices or double that number and obtain our larger 18 port 10amp or 20amp model for larger applications. The 9 port 5 amp and 18port 10Amp both output 500mA (0.5amp) per port or camera, this is sufficient to power any security camera without infrared. If you have cameras with infrared LEDs, then we suggest you get the high powered boxes like the 9port 10amp or 18port 20amp since they each output a little over 1amp per port and this is plenty to power infrared cameras from up to 300ft away.

If you are interested in UL rated power boxes, you can find them here: CCTV Power Boxes UL Rated

For wire runs longer than 300ft we suggest you use a 24V AC power supply box and use the 24 to 12V Converters to power each 12V DC surveillance camera.

For those of you running 24 Volt devices, purchase our 24VAC 10Amp 18 port model.

Each Power Distribution Panel includes a 110V power cable to connect the box to a AC wall socket.

Here are the specifications of each of the 12V Power distribution panels. You can make your selection by choosing above before hitting add to cart.

12VDC 4 port 5 Amp Model (sku 12045)

Specifications:

• Input Voltage: 110V AC
• Output Voltage: 12V DC
• 12V DC Output 1.1 Amp per port
• Total output current 5 Amp
• 4 PTC Fuse protected outputs
• Fuse Rating 1.1Amp
• Power On/Off Switch
• Power LED Indicator for each port or channel
• Surge Protected

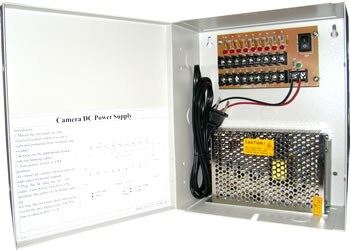

12VDC 9 port 5 Amp Model (sku 12095)

Specifications:

• Input Voltage: 110V AC
• Output Voltage: 12V DC
• 12V DC Output 0.55 Amp per port
• Total output current 5 Amp
• 9 PTC Fuse protected outputs
• Fuse Rating 1.1 Amp
• Power On/Off Switch
• Power LED Indicator for each port or channel
• Surge Protected
• Size: 9 3/4 x 8 x 3 3/4 inches (HxWxD)

12VDC 9 port 10 Amp Model (sku 120910) - High Powered

Specifications:

• Input Voltage: 110V AC
• Output Voltage: 12V DC
• 12V DC Output 1.11 Amp per port
• Total output current 10 Amp
• 9 PTC Fuse protected outputs
• Fuse Rating 2.0 Amp
• Power On/Off Switch
• Power LED Indicator for each port or channel
• Surge Protected
• Size: 9 3/4 x 8 x 3 3/4 inches (HxWxD)

12VDC 18 port 10 Amp Model (sku 121810)

Specifications:

• Input Voltage: 110V AC
• Output Voltage: 12V DC
• 12V DC Output 0.55 Amp per port
• Total output current 10 Amp
• 18 PTC Fuse protected outputs
• Fuse Rating 1.1 Amp
• Power On/Off Switch
• Power LED Indicator for each port or channel
• Surge Protected
• Size: 9 3/4 x 8 x 3 3/4 inches (HxWxD)

12VDC 18 port 20 Amp Model (sku 121820) - High Powered

Specifications:

• Input Voltage: 110V AC
• Output Voltage: 12V DC
• 12V DC Output 1.11 Amp per port
• Total output current 20 Amp
• 18 PTC Fuse protected outputs
• Fuse Rating 2.3 Amp
• Power On/Off Switch
• Power LED Indicator for each port or channel
• Surge Protected
• Size: 10.2 x 10.5 x 3 inches (HxWxD)
