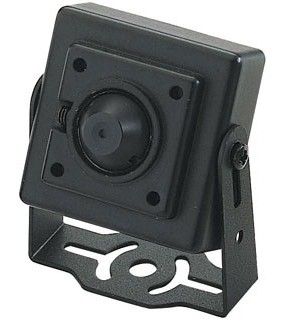

Color Mini Camera with Microphone

Item # GC36A

Be the first to review this product

Availability: In stock

$89.00

Please select the length of wire you would like to purchase. These Video+Power wires are able to carry both video and power signals over the same cable. We also carry cabling that has RCA audio connectors, which you can use to combine with a microphone to pick up audio.

$89.00

Lifetime Technical Support on all purchases

100% Guarantee with 30 Day Return Policy

Premium Service from 123-CCTV.com

Description

Details

Cost-effective Color Mini Camera that has a built-in microphone and a pinhole lens, which make the camera a perfect choice to hide behind anything you'd ever want. This mini board camera has 420 TV Lines of resolution thanks to its 1/3" CCD and a 3.7mm Pinhole Lens that provides a 80 degree angle of view. You can expect to see a person's face very clearly up to 25 ft away from the camera. The built-in microphone can pick up conversations from up to 60ft away.

Features:

  • Mini Camera with Microphone
  • 3.7mm Pinhole Lens for a 80 degree angle of view
  • 420 Lines Resolution
  • 0.5 Lux Minimum Illumination requires a lit room with at least a 20W light bulb
  • Very small metal case
  • Auto Gain Control
  • Auto White Balance
  • Female BNC Video Connector
  • 12V DC Jack
  • RCA Female Connector for Audio
  • Mounting Bracket Included
  • 12V 500mA power supply included

Includes:

  • 1x Color Mini Camera with Microphone
  • 1x 12V 500mA Power Supply

Specifications:


Image Sensor
1/3" Color SONY CCD Image Sensor

Picture Elements
(Horizontal x Vertical in mm)
512(H) x 492 (V), NTSC/EIA

Horizontal Frequency
NTSC/EIA 15.734KHz;

Vertical Frequency
NTSC/EIA 60Hz
  Clock Frequency
NTSC/EIA 19.0699MHz

Horizontal Resolution
420 Horizontal TV Lines

Minimum Illumination
0.5 Lux

Scanning System
2:1 Interlace

Signal to Noise Ratio
More than 46dB

Electronic Shutter Speed
1/100,000sec. Linear

Lens
3.7mm / f1.2 Pinhole Lens

Video Output
1V p-p 75 Ohms

Gamma
0.45

Power Supply
12V DC
  Power Consumption 150mA

Weight
54g approximate
  Dimensions 36mm(W) x 36mm(H) x 21mm(D) approximate

Storage Temperature
-30°C to +60°C

Operating Temperature
-10°C to +45°C

Additional Info

Additional Info

Warranty 1 Year
Return Policy 30 Days Return Policy
