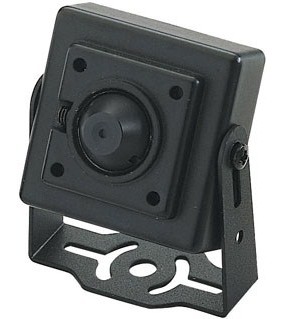

If you are looking for mini camera that you can hide which will let you see crystal clear video in lit conditions and the ability to see in total darkness, then you've found what you were looking for.
This is the highest resolution mini camera that you will find anywhere that also has WDR and a slow shutter. Wide Dynamic Range (WDR) allows cameras to see even when there is light glare from the sun or reflections off of shiny surfaces. The slow shutter function of this camera allows it to see in almost no light at all. To be specific, it has a 0.001 lux rating. This camera offers 600TV Lines of resolution and comes with 3.7mm pinhole lens that provides a 80 degree angle of view. You can expect to see a person's face very clearly up to 25 ft away from the camera.
Features:
- High Resolution 600TVL
- Mini Camera
- Wide Dynamic Range
- Slow Shutter 0.001 Lux - Meaning you can see in almost no light
- 3.7mm Pinhole Lens for a 80 degree angle of view
- Very small metal case
- Auto Gain Control
- Auto White Balance
- Female BNC Video Connector
- 12V DC Jack
- Mounting Bracket Included
- 12V 500mA power supply included
- On screen display menu controllable from the back of the camera
Includes:
- 1x Color Mini Camera
- 1x 12V 500mA Power Supply
Specifications:
|
Image Sensor
|
1/3" Color SONY Dual Scan CCD Image Sensor
|
|
|
Picture Elements
(Horizontal x Vertical in mm) |
811(H) x 508 (V), NTSC/EIA
|
|
|
Horizontal Frequency
|
NTSC/EIA 15.734KHz;
|
|
|
Vertical Frequency
|
NTSC/EIA 60Hz
|
|
| Clock Frequency |
NTSC/EIA 19.0699MHz
|
|
|
Horizontal Resolution
|
600 TVL
|
|
|
Minimum Illumination
|
0.5 Lux Legacy Mode, 0.001 Lux Star Light Mode
|
|
|
Scanning System
|
2:1 Interlace
|
|
|
Signal to Noise Ratio
|
More than 46dB
|
|
|
Electronic Shutter Speed
|
1/100,000sec. Linear
|
|
|
Lens
|
3.7mm / f1.2 Pinhole Lens
|
|
|
Video Output
|
1V p-p 75 Ohms
|
|
|
Gamma
|
0.45
|
|
|
Power Supply
|
12V DC
|
|
| Power Consumption | 200mA | |
|
Weight
|
65g approximate
|
|
|
Storage Temperature
|
-30°C to +60°C
|
|
|
Operating Temperature
|
-20°C to +50°C |
