HD Outdoor Mini PTZ Camera, 720p

Item # PTZ12CVI

Be the first to review this product

Availability: In stock

$599.99
$599.99

Lifetime Technical Support on all purchases

100% Guarantee with 30 Day Return Policy

Premium Service from 123-CCTV.com

Description

Details

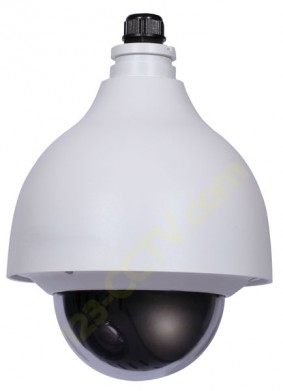

Mini High Definition PTZ Camera with 12X Zoom for outdoor or indoor use. This PTZ12CVI pan tilt zoom camera comes with a wall mount so it can be easily mounted indoors or outdoors to a wall. Thanks to its small size it is visually appealing for use in indoors in offices, warehouses, and other types of businesses. This mini PTZ camera connects to the latest EasyHD DVR over RG59 coaxial cable. Thanks to the EasyHD technology, both video and data are carried over one coaxial cable, allowing easy connection of the camera to the DVR. The hassle of connecting to a complicated RS485 connection is eliminated.

720p HDCVI comparison to 700TVL

Like its siblings, it features a 1/3" SONY Exmor Sensor, the best megapixel sensor in its price range that provides 1.3 megapixel resolution and outputs 720p video. This resolution far exceeds that of conventional CCTV cameras. In addition to the 12X optical zoom, it also has 16X digital zoom, making it possible for the camera to see detail far away. The 3D positioning offered by our HD DVRs and PTZ cameras makes it easy to zoom in at a point of interest. Simply draw a rectangle with your mouse on the camera video at the DVR, and the camera will zoom in to the location you outline.

It also comes with several professional features such as DWDR to help minimize glare. Also you can set 255 preset points on the camera through the DVR, and program up to 5 auto scans, 5 patterns and 8 tours. If you would like to connect this camera to a traditional PTZ joystick controller in addition to the DVR, you can do that through the RS485 connections on the camera.

If you are looking for other mounting options in this mini ptz, be sure to checkout the following items:

If you need help, you get free tech support with every purchase for the camera purchased. We also have free mobile apps and viewing software so you can view and control your cameras connected to the EasyHD DVR remotely through your smartphone (iPhone, or Android), tablets, or pc/apple computer.

Features:

  • Weather Proof Mini PTZ Camera
  • Small sized camera
  • 1.3 Megapixel video resolution
  • 720p Video recording on a EasyHD DVR
  • 12X Optical Zoom, 16X Digital Zoom
  • Endless 360 degree rotation with auto flip
  • Wall Mount
  • 24V AC Power Input
  • BNC HDCVI video output

Includes:

  • 1x HD PTZ Mini Camera
  • 1x Wall Mount
  • 1x Power Supply

Specifications:

Image Sensor1/3" 1.3 Megapixel CMOS
Effective Pixels1280 x 960
Electronic Shutter1/1 - 1/30,000s
Video Frame rate 720P(25/30/50/60fps)
Minimum IlluminationColor: 0.05 Lux, B/W: 0.005 Lux
Video Connector BNC
Video Signal HDCVI
Day/ NightAuto (ICR) / B&W / Color
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Noise Reduction2D / 3D
Focal Length5.1 mm - 61.2mm (12x Optical zoom)
Max ApertureF1.2 - F2.1
Angle of View51.3° - 4.64°
OSD MenuYes
Digital Zoom16x
Pan/Tilt RangePan: 0° - 360° endless; Tilt: -2° - 90°, auto flip 180°
Preset Speed Pan: 300° /s; Tilt: 200° /s
Preset 255
PTZ Mode5 Pattern, 8 Tours, 5 Auto Scan, Auto Pan
Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Power up Action Automatically resumes to previous direction and lens status after power failure
ProtocolEasyHD, Pelco-D, Pelco-P
RS485Yes Included
Power RequirementsAC 24V
Operating Temperature -40º to 140ºF
Operating Humidity 90% RH Max
Transmission DistanceUp to 1640ft with Solid Copper Coaxial Cable
Weather Proof Yes, IP66
Dimensions 7.33" diameter x 9.22" height

Additional Info

Additional Info

Warranty 1 Year
Return Policy 30 Days Return Policy
