Description
Details

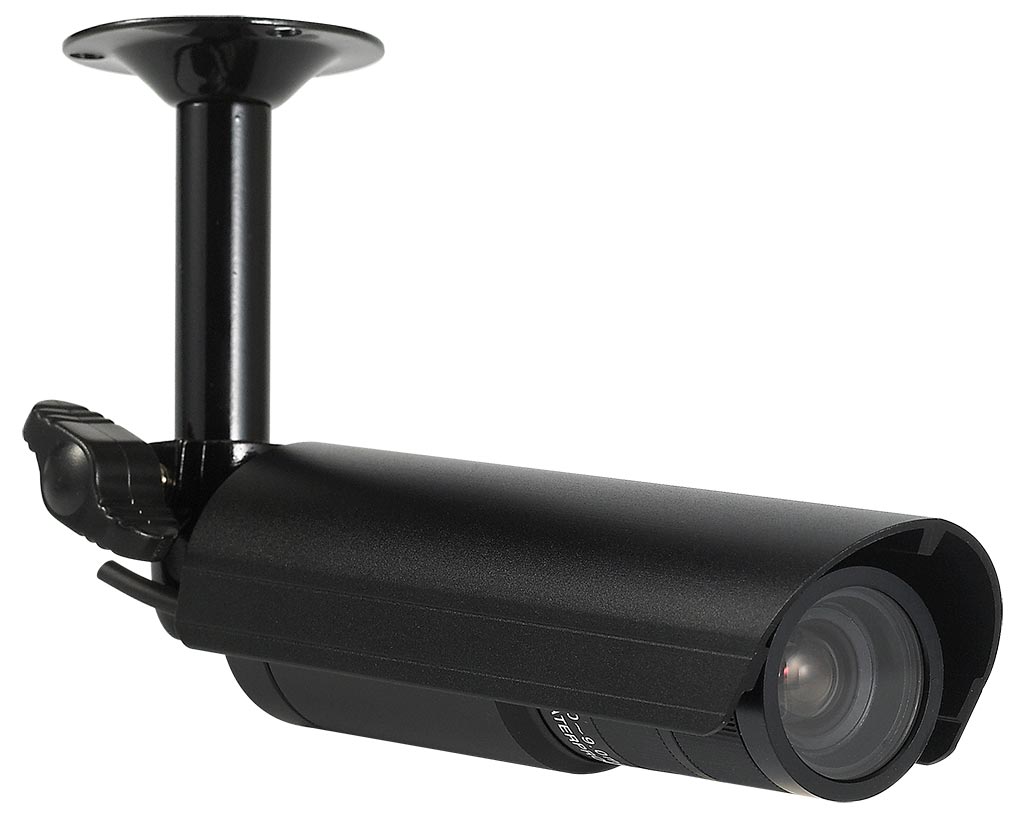

Another great varifocal outdoor color bullet camera by 123 CCTV. The BC6039 bullet camera provides a brilliant color resolution in almost any lighting condition. Thanks to the advanced high quality chip-set. The easy to adjust 4-9mm vari-focal lens can be focused and zoomed without the need to open the case. This makes setup a breeze. The included sun-shield and camera mounting bracket make this a complete package. The BC6039 is a stylish camera that blends into most office environments with ease.
Features:
- 1/3 inch Sony Super HAD color CCD sensor
- Razor Sharp 620 TV Line High Resolution
- 0.4 Lux (Color) / 0.03 Lux (B&W)
- 12 volts DC power source, 120mA power consumption
- 4~9mm Vari-focal Lens installed (External Focus and Zoom adjustable manually)
- Weather-Resistant
- Mounting bracket included
Includes:
- 1x Camera
- 1x Mounting bracket
- 1x 12V 500mA power supply
Specifications:
| Lens | 4-9mm Vari-focal Lens |
| Image Pick-up Device | 1/3 in Sony Super HAD CCD |
| Picture Element | 811(H) × 508(V) 410K pixels |
| Effective Picture Elements | 768(H) × 494(V) 380K pixels |
| Scanning Area | 3.65 (H) × 2.74(V)mm |
| Scanning System | 2 : 1 Interface / 525 Lines / 60 Fields / 30 Frames |
| Resolution | 620 TV Lines |
| Minimum Illumination | 0.4 Lux at F1.2 (Color) / 0.03 Lux at F1.2 (B/W) |
| Sync. System | Internal Only |
| Video Output | 1.0 Vp-p NTSC Comp. |
| Electronic Iris | 1/60 ~ 1/120,000 sec. |
| Backlight Compensation | Built-in |
| IRIS Mode | ESC |
| AGC | Built-in |
| White Balance | ATW / AWC |
| Gamma | r=0.45 |
| S/N Ratio | 48dB (AGC Off) |
| Dimension | 1.18”(Ø) × 3.9”(L) |
| Operating Temp | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Source | DC 12V / 300mA |
| Power Consumption | 100mA |
Additional Info
Additional Info
| Warranty | 1 Year |
|---|---|
| Return Policy | 30 Days Return Policy |
