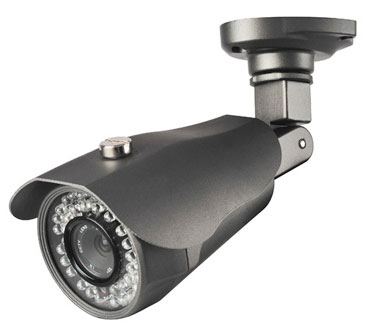

Loading... Please wait...This camera is a 600 TVL Resolution Color Outdoor Bullet Camera featuring the new SONY EFFIO-E image processor that just came out in 2011. It has 42 infrared LEDs that provide up to 130ft of night vision. This bullet camera has a lens that you can manually adjust at time of installation from 2.8mm for a wide angle view of 90 degrees to see things up close or set it all the way to 12mm for a 4.5x zoom to see objects that are far away. You can expect to get facial clarity up to 70ft away if you have a high resolution DVR Recorder, and see vehicles and people up to several hundred feet away. This is not your ordinary CCTV camera because of the image sensor that it has. Compared to other 600 TVL CCTV cameras on the market, it has one of the best SONY image sensors and a EFFIO-E Digital Signal Processor (DSP).
Features:
Includes:
If needed, choose cabling from Product Options above.
Specifications:
| Image Sensor | 1/3" SONY Super HAD II CCD with SONY EFFIO-E (No OSD) |
| Horizontal Resolution | 600 TV Lines Color |
| Pixels | NTSC:768(H)×494(V) |
| Usable Illumination | 0 Lux with Infrared On 0.001 with Infrared Off |
| TV System | NTSC |
| IR LED | 42 Infrared LEDs |
| IR Distance | Up to 130 ft |
| Lens | 2.8 - 12mm Manually Adjustable Zoom Lens |
| Sync System | Internal |
| S/N Ratio | ≥48dB (AGC OFF) |
| Gamma Correction | 0.45 |
| Video Out | Composite Signal BNC Output (1.0Vp-p, 75Ω) |
| Electronic Shutter Time | Auto: NTSC 1/60-1/100,000Sec |
| Operation Temperature | -20°C to + 50 °C, Relative Humidity 95% Max |
| White Balance | Auto |
| Power Source | DC12V 1000mA |
| Dimensions | 10 x 3.31 x 4.73 inches (width x height x depth) |
| Weight | 2 lbs |
