Night Vision Camera Outdoor, 700TVL, 200ft Infrared, Dual Voltage

Item # 3470AVA

Be the first to review this product

Availability: Out of stock

$199.99

Lifetime Technical Support on all purchases

100% Guarantee with 30 Day Return Policy

Premium Service from 123-CCTV.com

Description

Details

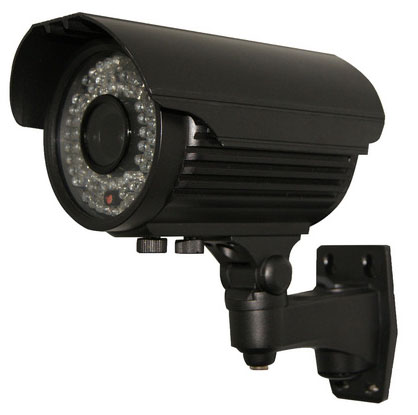

The 3470AVA is a great Long Range Night Vision Outdoor for use in wired CCTV applications where you need to see up to 200ft at night. The manual zoom lens lets you adjust the camera to the desired zoom length by hand and focus on objects that are important to you. The 3470AVA features a 2.8-12mm Lens that is perfect for focusing on subjects up to 40ft away to view facial detail. Best of All it features 700 Lines of Color Resolution, the highest in the CCTV industry. It features the latest SONY Effio Enhanced chipset compatible with the new 960H resolution DVRs to give you a true 960 Lines Picture. The camera is smaller in size compared to other large cameras that offer 200ft of infrared night vision thanks to its High Intensity Infrared LEDs, and its black color blends well in to any surroundings. This bullet camera also has a real genuine Color SONY image sensor to give you high resolution video. This camera also has a on screen display menu controllable with the button located on the cord next to the camera to change several camera settings.

Features:

  • Weatherproof Security Camera for outdoor or indoor use
  • 1/3" Sony CCD Image Sensor with Sony Effio Signal Processor to support 960H TV Line Recording with new 960H compatible DVRs
  • Highest Color Resolution on the market for a CCTV Camera - 700 TVL
  • 72 High Intensity Infrared LEDs for 200ft of infrared night vision
  • 0 Lux Rating when Infrared On
  • 0.001 Lux Rating when Infrared Off let's you see in color even with low lighting conditions
  • Bracket with pass through cabling to protect cabling from vandalism
  • IP66 Weatherproof rating to withstand rain, snow, and extreme cold or hot temperatures
  • 2.8-12mm Manual Varifocal Lens to set the camera to the desired zoom length at time of installation
  • 90 to 20 degree viewing angle manually adjustable
  • Wall Mount Bracket Design - mounts directly to exterior wall
  • For professionals: Advanced image features controllable via On Screen Display Menu built-in to camera
  • OSD controllable via joystick located on camera cable pigtail
  • ATR
  • Digital Noise Reduction
  • Black Colored Camera
  • BNC Video Output
  • Dual Voltage - 24V AC or 12V DC

Includes:

  • 1x 700TV Line Security Camera
  • 1x Allen wrench to adjust camera bracket
  • 3x Mounting screws
  • 1x 12V 1amp Power Supply

Avalonix 700 TVL Resolution Sony Effio-E Technology

Effio-E
Higher horizontal resolution over 650 TVL. Confirmed maximum resolution to achieve true 700 TV Lines of Resolution.
Effio-E
Digital Noise reduction (DNR) is a function that reduces the image noise to improve the image quality of the camera. In particular, it reduces the noise which is generated under low light conditions and other high-gain states.
The Effio-E comes with a space-based Noise Reduction function.
Effio-E
Excellent color reproduction under variety of light sources [1,800K to 10,500K Lumes]
Effio-E
Preset OSD Menu: The "Effio-E" signal processor includes OSD (on-screen display) functions that allow camera settings to be made using the joystick or button controller located on the camera cable or inside the camera.
Effio-E
ATR/ATR-EX: The ATR (Adaptive Tone Reproduction) function provides gradation compensation to improve the contrast of subjects whose gradation has been lost in cases where, for instance, both low-luminance areas and high-luminance areas exist in the same picture.
The ATR function improves the visibility of the entire picture by providing optimum gradation compensation for the image in one field based on the luminance information.

Specifications:

Image Sensor 1/3" SONY ExView HAD CCD II with SONY Effio-E DSP
Horizontal Resolution 700 TV Lines
Pixels NTSC:768(H)×494(V)
Usable Illumination Color: 0.001 Lux
Black and White: 0 Lux with Infrared On
TV System NTSC
IR LED 72 Infrared LEDs
IR Distance Up To 200 ft or 60 meters
Lens 2.8-12mm Manually Adjustable Zoom Lens
Sync System Internal
S/N Ratio ≥54dB (AGC OFF)
Gamma Correction 0.45
Video Output Composite Signal BNC Output (1.0Vp-p, 75Ω)
Electronic Shutter Time Auto: NTSC 1/60-1/100,000Sec
Operation Temperature -20°C to + 45 °C, Relative Humidity 95% Max
Storage Temperature -30°C to + 60 °C, Relative Humidity 95% Max
White Balance Auto
Power Source DC12V 850mA
Dimensions 10 x 4.33 x 4.14 inches (width x height x depth) approximate
Weight 3.53 lbs approximate

Additional Info

Additional Info

Warranty 1 Year
Return Policy 30 Days Return Policy
