Outdoor PTZ Security Camera DiGiDome

Item # Digidome9650

Be the first to review this product

Availability: In stock

Regular Price: $859.99

Now only: $699.00

You will need some way of controlling the pan tilt and zoom of this camera. If you do not have a DVR or PTZ controller with RS485 inputs, we suggest purchasing a PTZ controller.

Please select the length of wire you need to connect your camera back to the controller and DVR. This is a combination of 2 wires, CAT5 and Video/Power Siamese Cable

Please select the mounting bracket you would like with your camera. All cameras come with the wall mounting arm bracket.

Regular Price: $859.99

Now only: $699.00

Lifetime Technical Support on all purchases

100% Guarantee with 30 Day Return Policy

Premium Service from

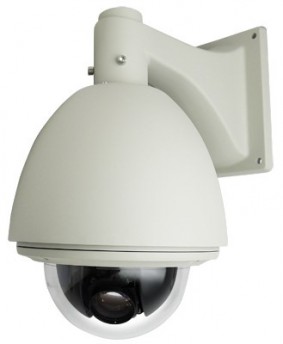

270X Zoom DiGiDome Outdoor Pan,Tilt & Zoom Camera

PTZ cameras have a wide range of functionality, and this camera is no exception. First it starts by having a great resolution of 540 TVL in color mode and 570 TV Lines in B/W, offering the best picture an analog PTZ camera can have. The camera is not only high resolution, it is also able to see in very low light. It has a 0.01 Lux 1/4" SONY CCD that can see in almost no light. Then if you dig slightly deeper you see that it offers amazing zoom, 27x optical zoom and 10x digital to be exact. It has a 3.5mm to 94.5mm optical zoom lens that allows the camera to see 27X. With this amount of zoom it will be easy to close in on a face or object 100ft away and recognize it. The other amazing factor about this camera is it can work through extreme heat thanks to the built-in blower, all the way down to -10 degrees Farenheit and all the way up to 140 degrees Farenheit. Another key ingredient to this camera is its 360 degree continuous pan range. So there is no need to worry about blind spots because this camera has always got you covered. Overall if you’re looking for a great PTZ speed dome camera with great value this Outdoor PTZ camera is perfect for you.

This camera comes with its own power supply and a free wall mount bracket. We provide you a choice of two different ptz controllers. We offer a 2D Joystick that lets you pan and tilt the camera with the joystick and zoom with a button. The 3D joystick lets you do all that plus zoom with the joystick without pressing a button. For camera cabling, you can choose from lengths of 100ft to 300ft of wire combination that carries the video signal, power, and data RS485 controls.


  • Outdoor Weather Proof Camera
  • 9 inch diameter Speed Dome Housing
  • All aluminum construction
  • Day and Night SONY 1/4" CCD that switches to black and white in low light
  • 540 TVL Color Resolution 0.1 Lux
  • 570 TVL Black and White Resolution 0.01 Lux
  • 3.5mm to 94.5mm Optical Zoom Lens
  • 27X Optical Zoom / 10X Digital Zoom  - Total 270X zoom
  • Built-in On screen display menu that let's you configure cruise modes, auto presets, and zones
  • 128 presets (can be labeled with editable title)
  • 4 pattern tours
  • Pans 360 degrees continuously
  • Tilts 90 degrees, automatically flips to the other side when reaching the bottom giving a continuous 180 degree tilt
  • 8 programmable zones
  • Lightning proof and surge proof protection TVS 1500W
  • IP66 weather proof housing for all weather use
  • Built-in blower allows use in temperature up to 140 degrees F
  • RS485 control through any PTZ controller
  • Support Pelco-D, Pelco-P, Samsung, and other PTZ protocols
  • 24V AC Power Supply Included


  • 1x High Speed PTZ Dome Camera
  • 1x 24V AC Power Supply Included
  • 1x Wall mount bracket
  • 1x 6 inch pigtail with BNC Video Jack, Power and RS485 Leads


Image Sensor Day & Night
Effective Pixels 768 (H) x 494 (V)
Resolution 540 Color / 570 TV Lines BW
Min. Illumination 1.0 (Day) / 0.01 (Night)
S/N Ratio More than 48dB
Focus & Iris Automatic / Manual
Lens 27x Optical Zoom, 10x Digital Zoom
Angle of View Wide 48 / Tele 2.7
Decoder Built-in
Motor Stepping Motor
Synchronization Internal / External
Preset 128 Presets, Can be Labeled with Editable Title
Pan Range 360° Continuously
Pan Speed 0.5 to 160 degrees per second
Tilt Range 0 to 90 degrees
Tilt Speed 0.5 to 90° / Second
Preset Find Time < 1.0 Second
Communication RS-485
Protocol Pelco-P, Pelco-D, Panasonic, Samsung, etc.
Operating Temp. -10°~ 60°C
Humidity 0-95%
Protection Grade IP66, TVS 1500w Lighting-proof & Surge-proof
Dimension 11.8 inches tall x 9 inches diameter
Net Weight 12 lbs approximately
