4 Channel Surveillance System 700TVL 200FT IR

High quality security system that is completely plug and play ready.  Ease of use is streamlined with a huge variety of features to make this a very attractive surveillance solution.  This Security Camera System will outshine any other camera systems you can find in this price range.

On the DVR end of this camera system, you’ll find a brand new high resolution DVR that truly exceeds expectations of today’s DVR units. Featuring a brand new user interface, this DVR delivers easy to use menus, and it’s amazing timeline video search feature.  No more confused searching through hours of video footage.  With this new timeline feature, you can easily pinpoint events quickly.  This DVR comes with a 250GB Hard Drive pre installed and formatted for your convenience allowing for about 3 weeks of continuous recording for all four cameras.  Motion detection is another important feature on this DVR.  It features sensitivity options, scheduling, and even motion-masking if you have an area that is triggering your motion too often.  On top of motion scheduling, you can schedule this DVR to manually record all the time when you need it to.  This DVR also features remote viewing not only from a PC or MAC, but from most Smartphones as well.

On the Camera side of this system, you will not be disappointed.  These are the best of the best with a resolution of 700TVL!  You will not find a camera with a higher resolution.  The DVR and Cameras complement each other in the astounding resolutions they are capable of.  These are very high quality cameras made of metal with a Sony Effio-E image sensors.  When installing these cameras, remember that they have a varifocal 2.8-12mm lens for the perfect angle.  The night vision on these cameras is an incredible 200ft with 50ft of facial capture distance and up to 200 feet for larger objects.  They will withstand the harshness of weather no problem.  These are very versatile and work well in an indoor or outdoor environment.

Our DVRs include:

Avalonix 700 TVL Resolution Sony Effio-E Technology

Higher horizontal resolution over 650 TVL. Confirmed maximum resolution to achieve true 700 TV Lines of Resolution.

Digital Noise reduction (DNR) is a function that reduces the image noise to improve the image quality of the camera. In particular, it reduces the noise which is generated under low light conditions and other high-gain states. The Effio-E comes with a space-based Noise Reduction function.

Excellent color reproduction under variety of light sources [1,800K to 10,500K Lumes]

Preset OSD Menu: The "Effio-E" signal processor includes OSD (on-screen display) functions that allow camera settings to be made using the joystick or button controller located on the camera cable or inside the camera.

ATR/ATR-EX: The ATR (Adaptive Tone Reproduction) function provides gradation compensation to improve the contrast of subjects whose gradation has been lost in cases where, for instance, both low-luminance areas and high-luminance areas exist in the same picture. The ATR function improves the visibility of the entire picture by providing optimum gradation compensation for the image in one field based on the luminance information.

 All necessary wiring and connectors you need are included in this system for you, and it is plug and play ready!

DVR Features:

• 4 Camera Video and 1 Audio Recorder
• H.264 hardware codec for the best video image quality in the industry in its price range
• Timeline search feature
• Real-time Live Display/Record allows you to have full-motion fluid moving video
• Triplex operation allows up to 3 tasks to be done on the DVR simultaneously
• Allow user to view live video, playback recorded video, record video, backup video, and access over network all at the same time without ever stopping recording
• Easy to use DVR menu for operation of the DVR featuring point and click navigation (mouse included)
• Independent camera settings customizable for each camera:
  • Video Loss Alarm
  • Motion Detection
  • Alarm Settings including trigger of built-in buzzer alarm, log events, and inform via email
• Full feature set of controls available when remotely viewing over internet through Internet Explorer or with the include windows viewing software:
  • View Live Video
  • Playback recorded video by selecting time of video or logged events of motion detection
  • Backup video over internet on to PC
  • Bandwidth Management for slow internet connections so smaller images are displayed faster
  • Support up to 5 remote viewers at the same time
• Included software allows control of up to 4 DVRs from one location
• VGA Video Output:
  • VGA output at 1280x1024 or 1024x768 Resolution to connect any computer VGA monitor
• USB port for video backup to a USB flash drive
• Multi-language User Interface selectable by user
• Hand Held Remote Control Included
• DVR comes with 250GB Hard Drive for up to 3 weeks of continuous video recording

Camera Features:

• 1/3inch Sony ExView CCD
• Sony Effio Digital Signal Processor
• 700 TV Lines Resolution
• ELC AGC AWB
• 84 IR LEDs, 0 Lux
• Night vision distance: 200ft
• 4.0 - 9.0mm Manual Zoom Vari-Focal Lens
• IP66 Weatherproof rating to withstand heavy rain, snow, and extreme cold or hot temperatures
• 12V DC 800mA Power required
• BNC Video Output
• 3 Axis Bracket to mount and position the camera at virtually any angle
• Bracket with pass through cabling to protect cabling from vandalism
• Camera cable has a joystick for control of On screen display menu for various image adjustments

Whats Included?

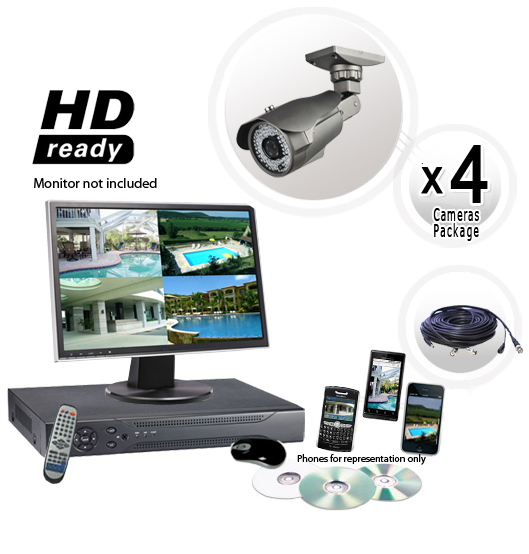

• 4 - Color Infrared  700TVL 4-9mm Bullet Cameras with wall mounting brackets
• 1 - 4 Channel Audio Video Digital Video Recorder with 250GB HDD
• 4 - 12 Volt DC 1Amp Power Supplies
• 4 - 50 ft Plug and Play Power/Video Siamese Cable
