WDR Security Camera Dome

Item # AV9950

Be the first to review this product

Availability: In stock


Please select the length of wire you would like to purchase. These Video+Power wires are able to carry both video and power signals over the same cable. We also carry cabling that has RCA audio connectors, which you can use to combine with a microphone to pick up audio.


Lifetime Technical Support on all purchases

100% Guarantee with 30 Day Return Policy

Premium Service from

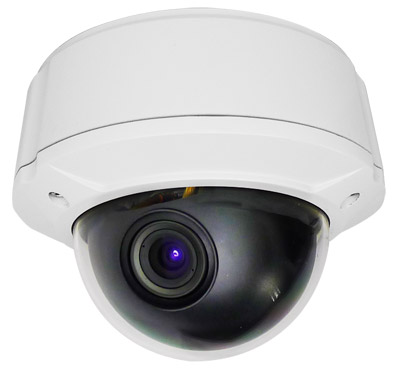

Outdoor or Indoor Dome Camera with WDR function that allows you to point the camera at bright light and still get clear video. This is the perfection solution if you currently have a camera that keeps getting too much glare from sunlight or a street lamp in its path. Also ideal for placement indoors in a store behind a glass door to see not only indoors but also outside without getting a washed out image of the outside area. You can even place it on a guard booth or entry point to look at approaching vehicles and the driver inside.


  • Color Dome Camera
  • Vandal Proof Dome design that prevents tampering with the camera
  • Pixim Image Sensor
  • 600 TV Lines Resolution - High Res!
  • 0.5 Lux in Color and 0.08 Lux in Black and White mode - Starlight Camera
  • Day and Night Camera that switches to black and white mode when it is very dark
  • REAL Wide Dynamic Range function to see even when light is shining at the camera
  • 3.5 to 8mm manually adjustable varifocal zoom lens
  • 75 degree viewing at widest setting
  • 40 degree viewing angle at narrowest setting
  • Camera has pigtail for BNC Video Output and 12V DC Jack
  • 12V DC Power Input
  • Power adaptor included


Example of WDR Function:

WDR Image Example


  • 1x WDR Dome Camera
  • 1x 500mA power supply


Image Sensor

Effective Pixels


Minimum Illumination


S/N Ratio

Signal System

Video Output


Operations Temperature


1/3" Sony Super HAD II CCD with Pixim DPS

600 TV Lines

720 (H) x 540(V)

3.5 - 8mm Varifocal Lens

0.5 Lux Color / 0.08 Lux BW

More than 48 dB


1.0V[p-p], 75W - BNC

12V DC 150mA

-10°C to 50°C (14°F to 122°F)

5.43" x 3.55"

Additional Info

Additional Info

Warranty 1 Year
Return Policy 30 Days Return Policy
