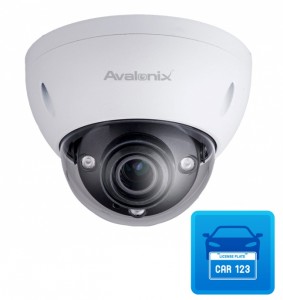

License Plate Capture Camera for Day and Night

Item # IPD3MZ735

Be the first to review this product

Availability: In stock

$1,199.99

Add PoE injector to power camera

Choose Optional Mount

* Required Fields

$1,199.99

Lifetime Technical Support on all purchases

100% Guarantee with 30 Day Return Policy

Premium Service from 123-CCTV.com

Description

Details

Below is a video sample of the video produced by this camera:



To configure the camera we've made a tutorial video below to better understand how to set the shutter rate using day and night profiles on the camera.



Features:

  • License Plate Capture Camera for Day and Night
  • Suitable for use to capture moving vehicles up to 40mph
  • Camera can be set to either one of the following modes:
    • General surveillance camera with night vision
    • License Plate Camera
  • 3MP Sony Sensor
  • Starlight technology to provide clear images in low light
  • H.265 and H.264 Video encoding
  • License plate number visible up to 150ft when lens is set to full zoom
  • Shortest working distance is 25ft
  • Infrared Night Vision up to 330ft for general surveillance mode
  • 7–35mm Motorized Zoom Lens, controllable from NVR, Smartphone, or Computer
  • 32°–11° Adjustable Angle of View
  • Three Video Streams - Main Stream, Sub Stream 1, Sub Stream 2
  • Auto Day/Night Switching Technology to switch to black & white in total darkness
  • Video Analytics features
    • Tripwire
    • Intrusion
    • Abandoned/Missing Object Detection
  • Super WDR for glare compensation
  • Pole, ceiling, and wall mountable
  • Support MicroSD support up to 128GB (optional)
  • Records to NVR, Computer, NAS, FTP, or internal MicroSD
  • View from NVR, Web Browser, Smartphone or Tablet
  • IP67 Weather Proof for use outdoors or indoors
  • Metal construction
  • Vandal Resistant and Impact Resistant
  • Plug and Play PoE connectivity for easy cabling with network cable
  • Multiple ways to power the camera (requires purchase of power source)
    • 802.3af/at PoE+
    • 12VDC
    • 24VAC



What's Included?

  • 1x License plate camera dome



Specifications:

Image Sensor1/2.8" 3MP Progressive Scan CMOS
Effective Pixels2048 (H) x 1536 (V)
Electronic Shutter SpeedAuto/Manual, 1/3 – 1/100000s
Minimum Illumination0.005 Lux F1.4 (Color), 0 Lux (IR On)
S/N RatioMore than 50dB
IR DistanceUp to 330ft
IR On/Off ControlAuto, Manual
IR LEDs3 Super IR LEDs
Lens TypeMotorized
Focal Length7–35mm
Max ApertureF1.4
Angle of ViewHorizontal: 32°–11°, Vertical: 23.8°–8.6°
Focus ControlMotorized
Close Focus Distance1ft
DORI DistanceLensDetectObserveRecognizeIdentify
Wide498ft196ft98ft50ft
Tele1627ft630ft324ft162ft
Bracket RangePan: 0° - 355°, Tilt: 0° - 65°, Rotation: 0° - 355°
CompressionH.265+, H.265, H.264+, H.264
Video AnalyticsTripwire, Intrusion, Object Abandoned/Missing, Heat Map
Streaming Capability3 Streams (Main Stream, Sub Stream 1, Sub Stream 2)
Resolution3MP (2048x1536), 1080P (1920×1080), 720P (1280x720), D1 (704x480), CIF (342x240)
Frame RateMain Stream: 3MP/1080P (1-60fps), Sub Stream 1: D1/CIF (1-60fps), Sub Stream 2: 1080P (1-60fps)
Bit Rate ControlCBR, VBR
Bit RateH264: 24K–10240Kbps, H.265: 14–9216Kbps
Day/NightAuto (ICR), Color, B/W
BLC ModeBLC, HLC, Super WDR (140db), SSA
White BalanceAuto, Natural, Street Lamp, Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Smart IRYes
DefogYes
Digital Zoom16X
Flip0°, 90°, 180°, 270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio InputYes, external mic
Audio CompressionG.711a, G.711Mu, AAC, G.726
Alarm Input2 channel In: 5mA 5VDC, 1 channel Out: 1A 30VDC / 0.5A 50VAC
EthernetRJ-45 Gigabit
ProtocolsHTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users
Recording MethodNVR, NAS (Network Attached Storage), Local PC for instant recording, Mirco SD
MicroSDmicroSD up to 128GB (not included)
Web ViewerIE
Smart PhoneiPhone, iPad, Android Phone
Power SupplyDC12V, AC24V, PoE+ (802.3at)
Power Consumption18W
Operating Conditions-40°F – +140°F, Less than 95% RH
Weather ProtectionIP67
Vandal ResistanceIK10
CasingMetal
Dimensions6.26" x 4.64" (diameter x height)
Net Weight2.2 lbs
CertificationsCE, UL

Additional Info

Additional Info

Warranty 1 Year
Return Policy 30 Days Return Policy
